Présentation

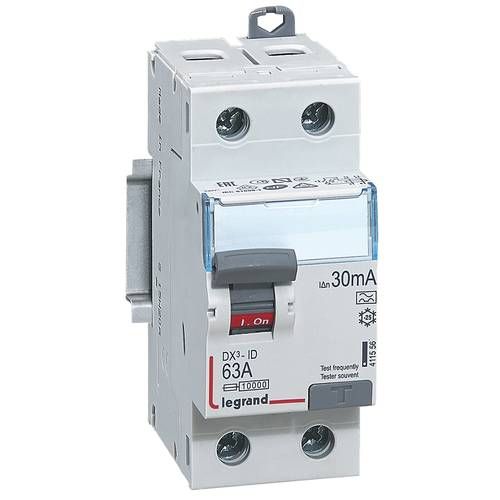

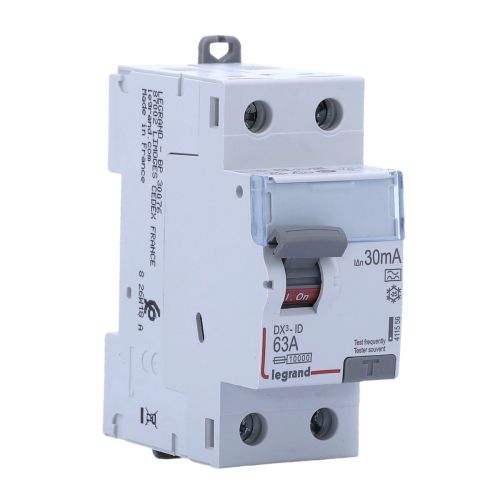

LEGRAND DX3 Interrupteur différentiel 63A 30mA type A 230V - 411556
L'interrupteur différentiel Legrand de type A détecte les défauts à composantes alternative et continue. Il est conçu pour des circuits spécialisés : cuisinière, plaque de cuisson, lave-linge...
- Cet interrupteur différentiel Legrand s'adapte à tous les chantiers (neuf et rénovation) grâce à sa grande polyvalence de raccordement à vis.
- Repérez facilement le circuit protégé grâce au porte étiquette présent sur l'avant de cet interrupteur différentiel 63A.
- Avec les repères colorés du statut ON (vert) et OFF (rouge) de cet interrupteur différentiel, vous avez une indication visuelle immédiate.
Fiche e-catalogue interrupteur différentiel Legrand
- Norme NF
- Norme CE
- Garantie 2 ans
-
Fabriqué en France
Descriptif
Caractéristiques techniques de cet interrupteur différentiel Legrand :
- Intensité nominale : 63A
- Sensibilité : 30mA
- Type : A
- Nombre de modules : 2
- Connexion : bornes à vis
- Raccordement : arrivée par le haut et sortie par le bas.
- Section de fils acceptée : jusqu'à 25mm² (souples) - 35mm² (rigides)
- Tension : 230V
- Montage : rail DIN
- Conforme à la norme NF EN 61008-1
Optez pour la fiabilité et la sécurité des interrupteurs différentiels Legrand.
Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
Offre spéciale
ALDES Kit VMC simple flux autoréglable EasyHOME COMPACT avec grilles BIP - 11026035
- Réf. 123Elec : ALD11026035
- Réf. Fabricant : 11026035
129,81 € TTCDEEE inclue
de 1,00 €108,17 € HTDEEE inclue
de 0,83 € -
EUROHM XL Air'métic Boite encastrement simple étanche à l'air D67 P40 - 52061
- Réf. 123Elec : EUR52061
- Réf. Fabricant : 52061
0,38 € TTC0,32 € HT -
EUROHM XL Air'métic Boite encastrement double étanche à l'air P40 E71 - 52064
- Réf. 123Elec : EUR52064
- Réf. Fabricant : 52064
1,97 € TTC1,64 € HT -
EUROHM XL AIR'metic Point de centre DCL D67 P50 + douille E27 + fiche - 53062
- Réf. 123Elec : EUR53062
- Réf. Fabricant : 53062
3,98 € TTC3,32 € HT -
Auto
EUROHM Oxxo Interrupteur va et vient étanche complet anthracite IP55 - 60800
- Réf. 123Elec : EUR60800
- Réf. Fabricant : 60800
4,85 € TTC4,04 € HT -
Auto
EUROHM Oxxo Interrupteur double va et vient étanche complet anthracite IP55 - 60802
- Réf. 123Elec : EUR60802
- Réf. Fabricant : 60802
11,20 € TTC9,33 € HT -
Auto
EUROHM Oxxo Prise de courant 2P+T étanche complet anthracite IP55 - 60840
- Réf. 123Elec : EUR60840
- Réf. Fabricant : 60840
5,20 € TTC4,33 € HT -
Auto
EUROHM Oxxo Double prise de courant 2P+T étanche complet anthracite IP55 - 60841
- Réf. 123Elec : EUR60841
- Réf. Fabricant : 60841
16,75 € TTC13,96 € HT -
IKEPE Goulotte GTL 13 modules 2 compartiments clipsable
- Réf. 123Elec : IKE821063
- Réf. Fabricant : GTL13M2CC
79,90 € TTC66,58 € HT -
IKEPE 1/2 Goulotte GTL 13 modules avec embout
- Réf. 123Elec : IKE821069
- Réf. Fabricant : 1/2GTLX13M2F
49,90 € TTC41,58 € HT -
IKEPE Reno Compact Coffret de communication Grade 1 - 4RJ45
- Réf. 123Elec : IKEGA225
- Réf. Fabricant : GA225
52,90 € TTC44,08 € HT -
LEGRAND DX3 Interrupteur différentiel 40A 30mA type AC 230V - 411505
- Réf. 123Elec : LEG411505
- Réf. Fabricant : 411505
35,90 € TTC29,92 € HT -
LEGRAND DX3 Interrupteur différentiel 63A 30mA type AC 230V - 411506
- Réf. 123Elec : LEG411506
- Réf. Fabricant : 411506
35,90 € TTC29,92 € HT -
LEGRAND DX3 Interrupteur différentiel 40A 30mA type A 230V - 411555
- Réf. 123Elec : LEG411555
- Réf. Fabricant : 411555
44,95 € TTC37,46 € HT -
Câble électrique R2V 2x10mm² B/M - Prix au mètre
- Réf. 123Elec : MIG810102001009207
- Réf. Fabricant : 810102001009207
3,98 € TTC3,32 € HT -
Spot LED BBC encastrable et orientable dimmable 230V 6W 515lm CCT 82mm blanc
- Réf. 123Elec : PHN000002
- Réf. Fabricant : 000002
15,95 € TTCDEEE inclue
de 0,10 €13,29 € HTDEEE inclue
de 0,08 € -
ARLUX Réglette LED intégrée Link étanche 230V 18W 1600lm 60cm blanc
- Réf. 123Elec : PHN740038
- Réf. Fabricant : 740038
15,89 € TTCDEEE inclue
de 0,10 €13,24 € HTDEEE inclue
de 0,08 € -
ARLUX Réglette LED intégrée Link étanche 230V 36W 3300lm 120cm blanc
- Réf. 123Elec : PHN740039
- Réf. Fabricant : 740039
27,40 € TTCDEEE inclue
de 0,25 €22,83 € HTDEEE inclue
de 0,21 € -
Prix dégressifs
Spot LED BBC encastrable 230V 5W 600lm CCT 86mm blanc
- Réf. 123Elec : PHN950110
- Réf. Fabricant : 950110
10,50 € TTCDEEE inclue
de 0,10 €8,75 € HTDEEE inclue
de 0,08 € -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante blanc - S520052
- Réf. 123Elec : SCHS520052
- Réf. Fabricant : S520052
2,95 € TTC2,46 € HT
Caractéristiques
Référence fabricant | 411556 |
---|---|
Gencode EAN | 3245064115568 |
Marque | LEGRAND |
Gamme du produit | Legrand DX3 à vis |
Fonction du module | Interrupteur différentiel |
Intensité | 63A |
Sensibilité différentiel | 30mA |
Type de différentiel | Type A |
Bornes auto | Non |
Type de connexion | A vis |
Nombre de pôles | Monophasé 1P+N |
Tension | 230V CA |
Emprise (en nombre de modules) | 2 |
Garantie | 2 ans |
Fabrication française | Oui |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
