LEGRAND Plexo Prise de courant 2P+T recharge véhicule électrique saillie complet étanche anthracite IP55 - 069785L
- Réf. 123Elec : LEG069785L
- Réf. Fabricant : 069785L
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
Tube IRL tulipé D20 3321 L2m gris Gewiss - Lot de 24
- Réf. 123Elec : GEWDX27620-B24X2
- Réf. Fabricant : DX27620
-
LEGRAND Batibox Boite encastrement simple à sceller P40 - 080141
- Réf. 123Elec : LEG080141
- Réf. Fabricant : 080141
-
Câble électrique R02V 4G1.5² N/M/G/VJ - Couronne de 50m
- Réf. 123Elec : NEX10216504
- Réf. Fabricant : 10216504
Présentation
LEGRAND Plexo Prise de courant 2P+T recharge véhicule électrique saillie complet étanche anthracite IP55 - 069785L

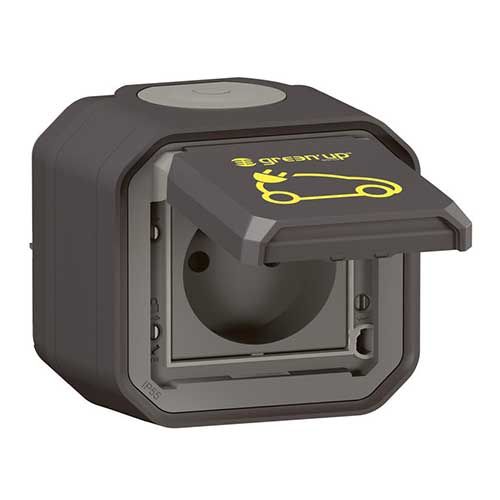

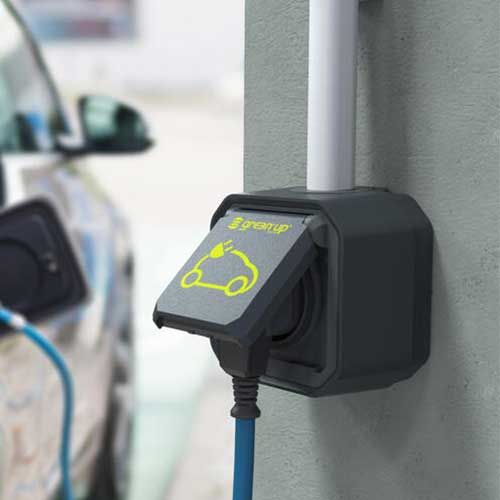

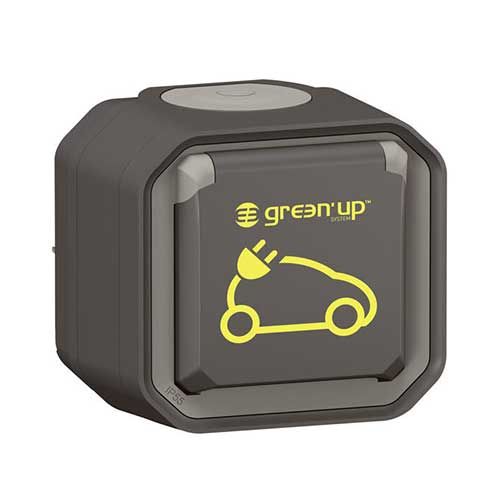

Legrand vous propose cette prise de courant étanche complète de sa gamme Plexo. Cette prise électrique Green'up Access vous permet de brancher et de recharger votre véhicule électrique.
- Cette prise électrique Green'up Access, brevetée par la marque Legrand offre une recharge jusqu'à 2 fois plus rapide pour les véhicules électriques équipés du cordon de recharge Green'up. Cette information est à vérifier auprès du constructeur automobile.
- Cette prise de courant Legrand Plexo délivre une puissance de 3,7kW maximum et ne nécessite pas d'habilitation IRVE pour l'installation.
- Ce mécanisme prise courant 2P+T résiste à l'humidité, à la poussière et aux chocs comme l'indique son indice de protection IP55 et sa résistance IK08.
Fiche e-catalogue prise de courant Legrand
- Norme NF
- Norme CE
- Garantie 2 ans
-
Fabriqué en France
Descriptif
Informations techniques de cette prise de recharge pour véhicule électrique :
- Type de produit : prise de courant 2P+T
- Type de raccordement : à vis
- Avec capot de protection : oui
- Couleur : anthracite
- Finition : mat
- Mode de pose : saillie
- Type de fixation : à vis
- Matière : plastique
- Type de courant : CA monophasé
- Courant nominal max : 16A
- Tension nominal : 230V
- Indice de protection : IP55
- Résistance aux chocs : IK08
- Largeur : 82mm
- Hauteur : 84,5mm
- Profondeur : 63,5mm
Domaines d'application : Les appareillages Plexo sont adaptés à tous les types de chantiers (résidentiels, tertiaires, industriels).
Conseil d'utilisation : Le raccordement de cette prise électrique à partir du tableau électrique se fait par une ligne dédié (1 ligne par prise) avec protection par un disjoncteur différentiel 30mA - 20A, type F (ex Hpi).
La gamme Plexo en vidéo :
Caractéristiques e-catalogue Legrand :
Fiche technique Legrand Plexo réf. 069785L
Pour vos chantiers de rénovation, choisissez le matériel électrique Legrand disponible au meilleur prix sur 123elec et la gamme Plexo pour des appareillages robustes et étanches.
