SCHNEIDER Acti9 transformateur pour sonnerie 230V vers 12V ou 8V 8VA - A9A15216
- Réf. 123Elec : SCHA9A15216
- Réf. Fabricant : A9A15216
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SCHNEIDER Resi9 XP Sonnerie modulaire 80dB 8/12V - R9PCBB
- Réf. 123Elec : SCHR9PCBB
- Réf. Fabricant : R9PCBB
-
SCHNEIDER Resi9 XP Disjoncteur 2A Ph+N courbe C 3kA 230V - R9PFC602
- Réf. 123Elec : SCHR9PFC602
- Réf. Fabricant : R9PFC602
-
SCHNEIDER Resi9 XE Disjoncteur 2A auto Ph+N courbe C 3kA 230V - R9EFC602
- Réf. 123Elec : SCHR9EFC602
- Réf. Fabricant : R9EFC602
Présentation

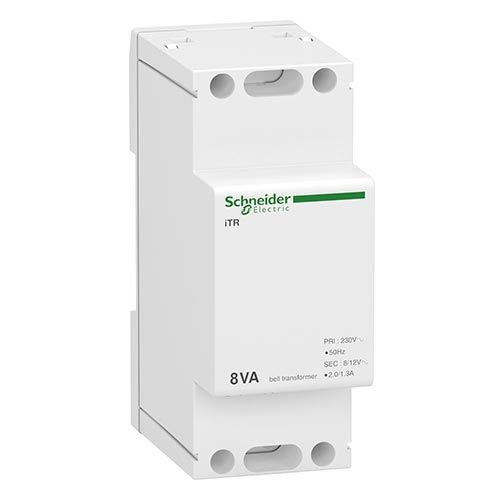

SCHNEIDER Acti9 transformateur pour sonnerie 230V vers 12V ou 8V 8VA - A9A15216
Ce transformateur pour sonnerie permet de convertir une tension de 230V en une tension plus basse (8V ou 12V) adaptée au fonctionnement des sonnettes ou carillons.
- Ce transformateur pour sonnerie est adapté aux installations neuves, comme à la rénovation.
- Schneider Electric a conçu ce transformateur avec une protection court-circuit de sortie intégrée.
- Ce transformateur Schneider Acti9 possède une puissance nominale de 8VA élevée pour une grande distance de raccordement.
Fiche e-catalogue transformateur de sonnerie Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
Caractéristiques techniques de ce transformateur de sonnerie :
- Gamme : Acti9
- Type de produit : transformateur
- Tension assignée d'emploi : 230V CA 50/60 Hz

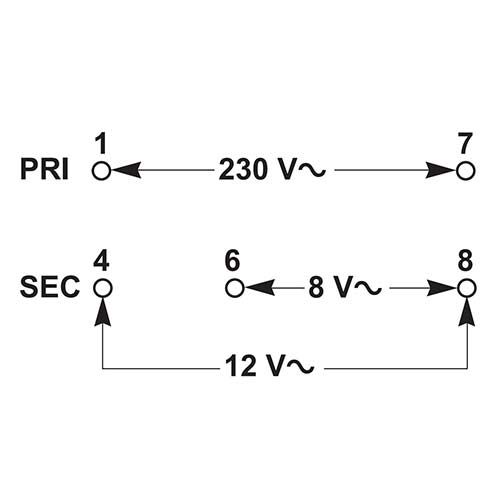

- Tension de sortie :
- 8/12V : +/- 15 % en charge
- 13/18V : hors charge
- Protection court-circuit sortie : intégré
- Puissance nominale en VA : 8VA
- Mode d'installation : fixe
- Support de montage : rail DIN symétrique 35mm
- Pas de 9 mm : 4
- Indice de protection : IP20
- Dimensions :
- Hauteur : 89mm
- Largeur : 36mm
- Profondeur : 60mm
- Borne de raccordement auxiliaire :
- Bornes type tunnel rigide 2,5mm²
- Bornes type tunnel souple 2,5mm²
- Bornes type tunnel flexible avec embout 2,5mm²
Caractéristiques e-catalogue Schneider :
- Fiche technique transformateur de sonnerie réf. A9A15216
- Notice technique transformateur de sonnerie Schneider Acti9
Schneider Electric vous propose du matériel de qualité pour vos installations neuves ou pour la rénovation.
